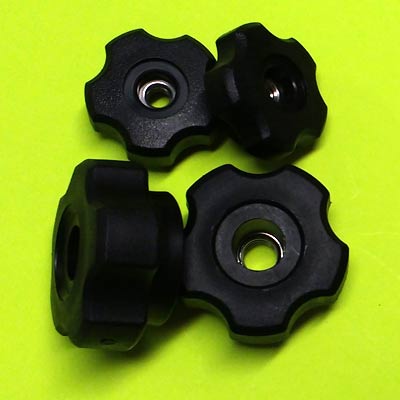

Fluted, Threaded Knobs

1/4-20 - $1.35 each
3/8-16 - $1.65 each

Thru Hole Fluted, Threaded Knobs

Rubber, Stainless insert

These knobs have all sorts of uses for DIYers in general and boatbuilders in particular. The thread is either 1/4-20 or 3/8-16, and they both have stainless steel inserts. The smaller size fit our glue-on studs add they will work with 1/4-20 or 3/8-16 allthread.

One thing you can use these knobs for is to mount our kayak footbraces or rudder control footbraces.

If you need a thumbscrew, it is easy to use a threaded (1/4-20) machine screw or piece of all thread rod cut to length and glued into the threads in the nut.

A B C D Thread
1.36" 0.98" 0.17" 0.53" 1/4-20
1.75" 1.23 0.28 0.86 3/8-16

Note: click the thread sizes in the chart above for a complete spec PDF file.
